SpeedyBee F405 V5 OX32 55A 4in1 Stack - Standard Edition
₹8,499.00₹9,499.00
11% off
You save ₹1,000.00
Price exclusive of all taxes
Out of stock
Product Description

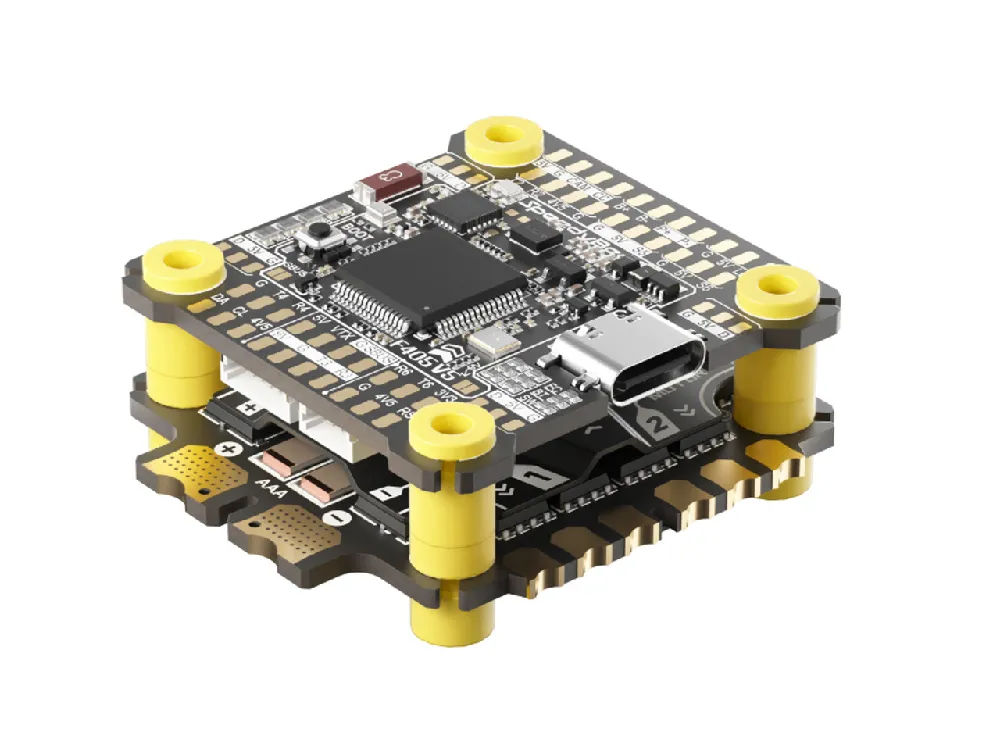

The SpeedyBee F405 V5 OX32 55A 4in1 Stack with 55A OX32 ESC is SpeedyBee's latest stack. It features a 55A 4in1 OX32 ESC and an F405 flight controller that supports the SpeedyBee phone app to configure your quad on the go.

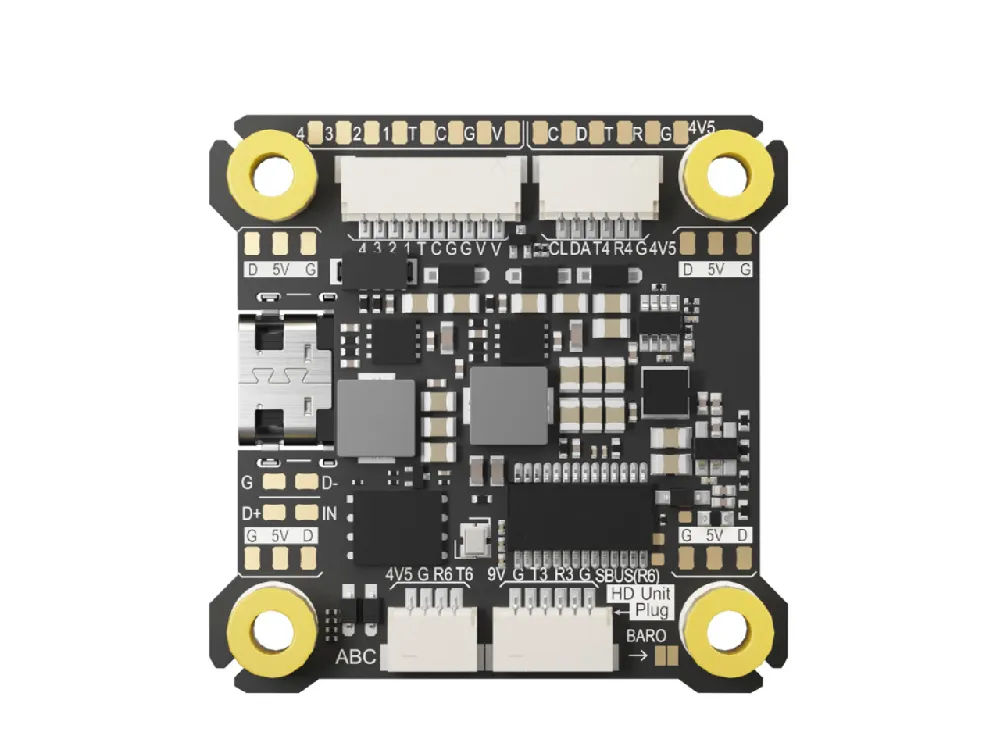

SpeedyBee F405 V5 FC Specifications:
- Product Name : SpeedyBee F405 V5 30.5×30.5mm Model Aircraft Flight Controller
- MCU : STM32F405
- IMU (Gyro) : ICM42688P
- USB Port Type : Type-C interface
- Barometer : SPA06-003
- OSD Chip : AT7456E
- Full-featured Bluetooth Tuning : Supported. Connect via SpeedyBee App for FC firmware flashing and parameter tuning.
- Wireless FC Firmware Upgrade : Supported
- DJI Air Unit Connection : Supports 6-pin direct plug-in or solder connection
- Blackbox : Supported, built-in 16MB storage chip
- Input Voltage : 3-6S LiPo battery
- Independent 5V BEC Output : 9 groups, total output current 1.5A
- Independent 9V BEC Output : 2 groups, total output current 3A, supports PINIO remote on/off control
- MCU & Gyro Power : Independent LDO
- 3.3V Output : 1 group (1× 3.3V pad on front)
- 4.5V Output : 3 groups (3× 4.5V pads on front), max output current 1A
- ESC Signal : M1-M4 pads and 10-pin connector on the back
- Servo Signal : S5-S6 pads on the front
- ESC Telemetry Input : Supported (UART5)
- Betaflight Camera Tuning Pad : Supported (CC pad on front)
- I2C : Supported (GPS connector + pads)
- UART : UART1 (Bluetooth); UART2 (front pads for receiver); UART3 (DJI VTX pads + rear SH1.0-6-pin); UART4 (GPS pads + front SH1.0-6-pin); UART5 (TLM); UART6 (receiver pads + rear SH1.0-4-pin)
- ST LED Pads : Supported, controlled by FC firmware
- Meteor LED Strip Pads : Supported, SB-LED/ST-LED mode switchable via BOOT button or App
- Buzzer Pads : Supported
- BOOT Button : Hold for DFU, short-press cycles LED, long-press switches SB-LED/ST-LED
- RSSI Pads : Supported
- SmartPort : Not supported
- Supported FC Firmware : Betaflight, INAV, Ardupilot
- Firmware Target Name : SPEEDYBEEF405V5
- Factory Firmware Version : Betaflight 4.5.2
- Configurator Version : Betaflight 10.10.0
- Mounting Holes : 30.5 × 30.5mm (Ø4mm), side opening
- Dimensions : 39mm × 39mm × 4.9mm
- Weight : 8.1g

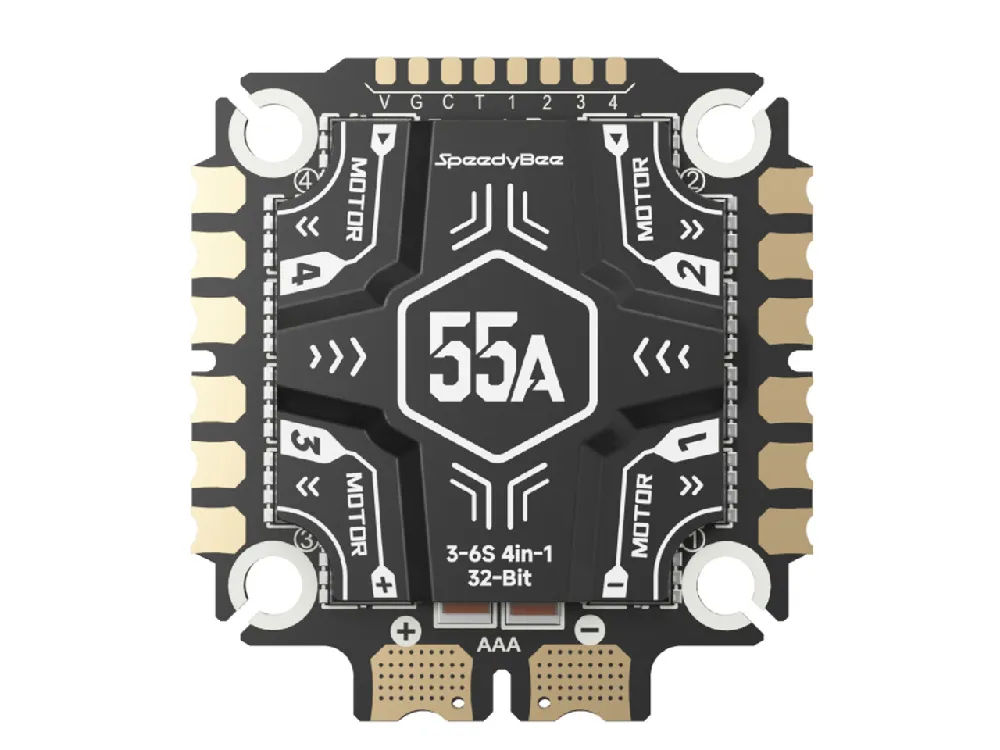

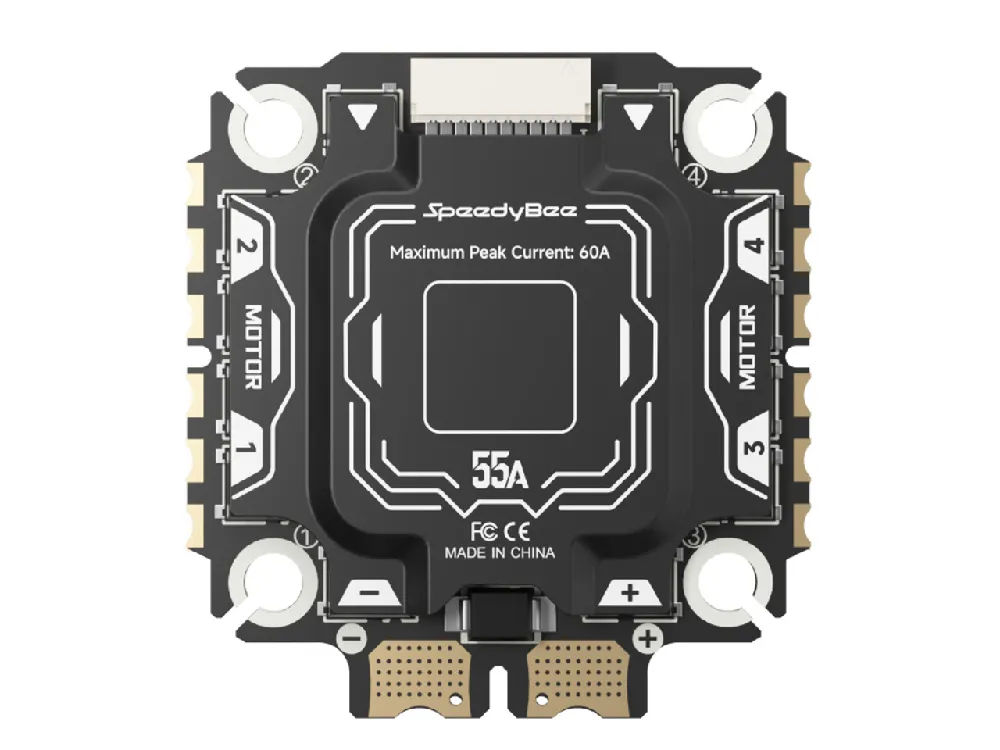

SpeedyBee OX32 55A ESC Specifications:
- Product Name : SpeedyBee OX32 55A 30.5×30.5 4-in-1 ESC
- Default Firmware : OX32
- Continuous Current : 55A (per channel) / 220A (4-in-1)
- Maximum Current : 70A (per channel) / 280A (4-in-1)
- TVS Protective Diode : Yes (built-in)
- External Capacitor : 1000µF Solid Capacitor (included in package)
- ESC/Motor Protocol : DSHOT300/600
- Input Voltage : 3-6S LiPo
- Power Output : VBAT
- Current Sensor : Supported
- ESC Telemetry : Supported
- Mounting Holes : 30.5 × 30.5mm (Ø4mm), side opening
- Dimensions : 40.9mm (L) × 44.9mm (W) × 8.0mm (H) (incl. heatsink)
- Weight : 19.1g
- ESC Webpage : https://ox32.oxbot.com/
- Current Meter Note : Supported (Scale=27, Offset=-2644)
Includes:
- 1x SpeedyBee F405 V5 OX32 55A 4in1 Stack
- Accessories
