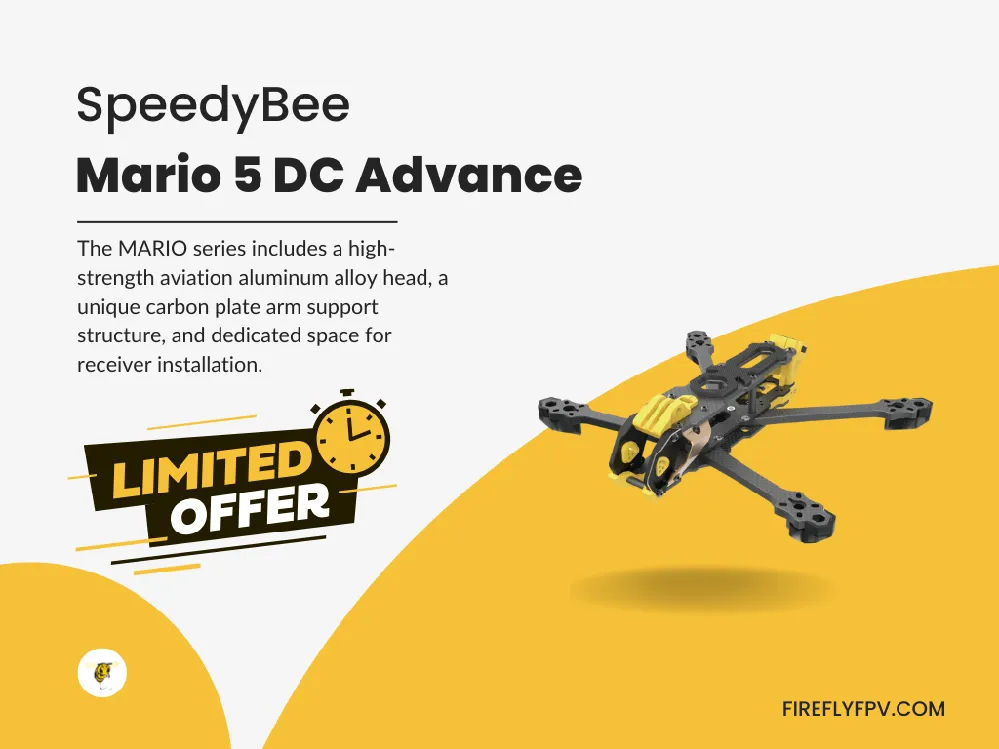

Speedy Bee Mario 5 DC Advanced Frame Kit - Discontinued

Product Description

✨ Elevate your FPV drone experience with the Speedy Bee Mario 5 DC Advanced Frame Kit, designed for both freestyle and racing enthusiasts. Built with high-quality materials and engineered for exceptional performance, this frame is a must-have for your 5-inch drone builds.

Key Features:

➤ 🛠 Durable & Lightweight Design: Crafted with precision to withstand crashes while keeping your drone agile and responsive.

➤ 📐 5-Inch Deadcat (DC) Frame: Provides a low-profile design with no props in view for smoother FPV footage.

➤ ⚙️ Advanced Structure: Perfectly optimized for freestyle tricks or high-speed racing.

➤ 🔧 Flexible Build Options: Supports a wide range of components, giving you the freedom to customize your setup.

Specifications:

➤ Frame Type: 5-inch Deadcat (DC)

➤ Wheelbase: 227mm

➤ Weight: 170 ± 5g (including 3D printed parts)

➤ Plate Thickness:

Top Plate: 2.5mm

Middle Plate: 2.0mm

Bottom Plate: 2.5mm

➤ Arm Thickness: 6mm

➤ Camera Mounting Screw: 7mm

➤ 3D Printed Parts: Yellow TPU

➤ Battery Anti-Slip Pad: Silicone 3mm

➤ Motor Hole Position: Φ8mm

➤ Propeller Size: Max 5.1 inch

➤ Motor Mounting: 16-19mm

➤ Flight Controller Mounting: 30.5x30.5mm (M3)

➤ VTX Mounting: 20x20mm (M2) / 25.5x25.5mm (M2)

➤ Head Material: Aviation Aluminum Alloy

➤ Aluminum Column Material: 7075 D523mm / D4622mm

➤ Internal Mounting Height: 23-31mm

➤ Receiver Installation Space: 25x13x6mm

➤ Suitable Capacitor Size: Φ10mm x 20mm

➤ GPS Installation Size: 18x18x7mm

Package Includes:

📦 1x Speedy Bee Mario 5 DC Advanced Frame Kit

Whether you're into freestyle, bando flying, or competitive racing, the Speedy Bee Mario 5 DC Frame Kit is built to take your skills to the next level.
