Sologood 5.8G 64CH 3 Watt Long Range VTX

₹5,999.00₹6,999.00

14% off

You save ₹1,000.00

Price exclusive of all taxes

1

Product Description

Sologood 5.8G 64CH Long Range VTX 3W 25mW/400mW/800mW/1500mW/3000mW/Pit Mode FPV Transmitter for RC FPV Drone


TX3000N Image Transmission User Manual


Please ensure that the antenna is connected before powering on, otherwise it may be damaged!!!



Specifications:
  • Weight: 22g (excluding antenna)
  • Dimensions (L x W x H): 41 x 30 x 13mm (excluding button protrusions).
  • Mounting holes: 20 x 20mm spacing, M1.6 threaded holes.
  • Operating Voltage: DC 7V-36V (2S-8S)

Operating Current: 1100mA ± 100mA at 12V

  • Maximum Power Consumption: 14 watts
  • RF Transmission Power: Greater than 34.8dbm (3.0 watts)

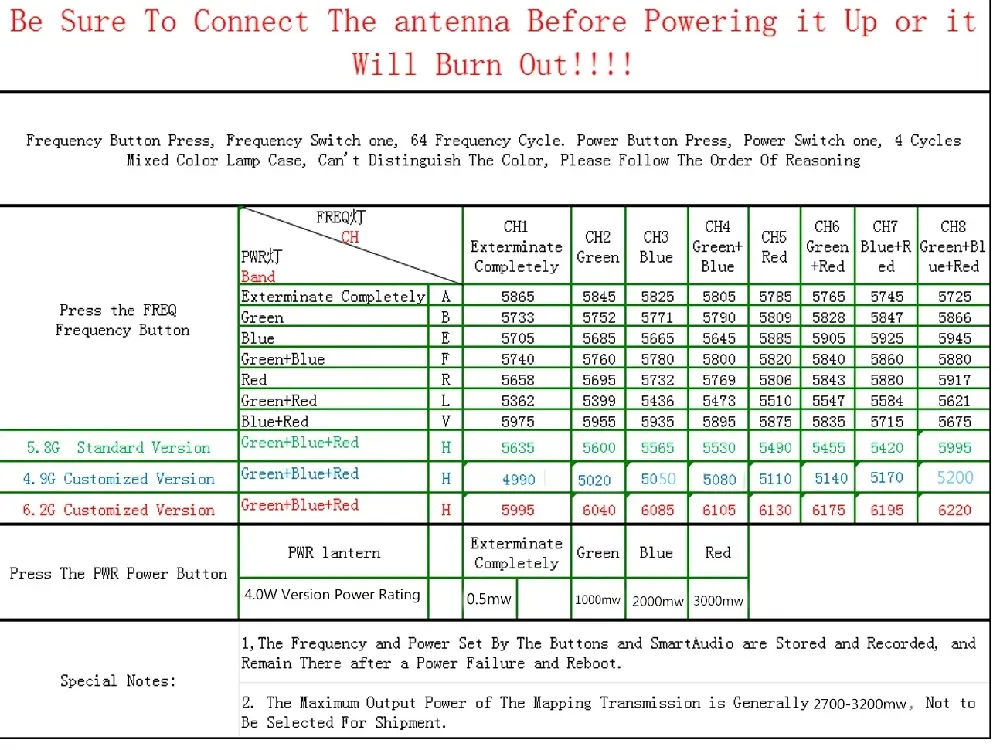

  • 64 operating channels, selectable via buttons
  • 4 power levels, button-selectable settings
  • 5.8GHz video transmission transmitter (compatible with PAL and NTSC) compact design, small size, high transmission power
  • Utilizes large-scale integrated circuits and automotive-grade components for high reliability
  • Built-in frequency phase-locked loop, low harmonic radiation, high reliability, and stability using digital phase
  • locked loop circuitry, no temperature drift
  • Supports TBS protocol OSD parameter adjustment


Features
  • 1. DC-IN image transmission power input positive pole, supporting a range of 7-36v.
  • 2. GND diagram transmission power input negative pole
  • 3. Video analog video signal input
  • 4. DATA OSD tuning communication data cable, supporting the protocol Smartudio
  • 5. GDN image transmission output negative pole
  • 6. 5V-OUT image transmission output positive pole, maximum output current 350MA. Note: Connect a wide voltage camera like 5-12, Possible insufficient power supply voltage for the camera, resulting in no image and black screen.
