SEQURE Blueson A2 6S 65A AM32 4 In 1 ESC

Product Description

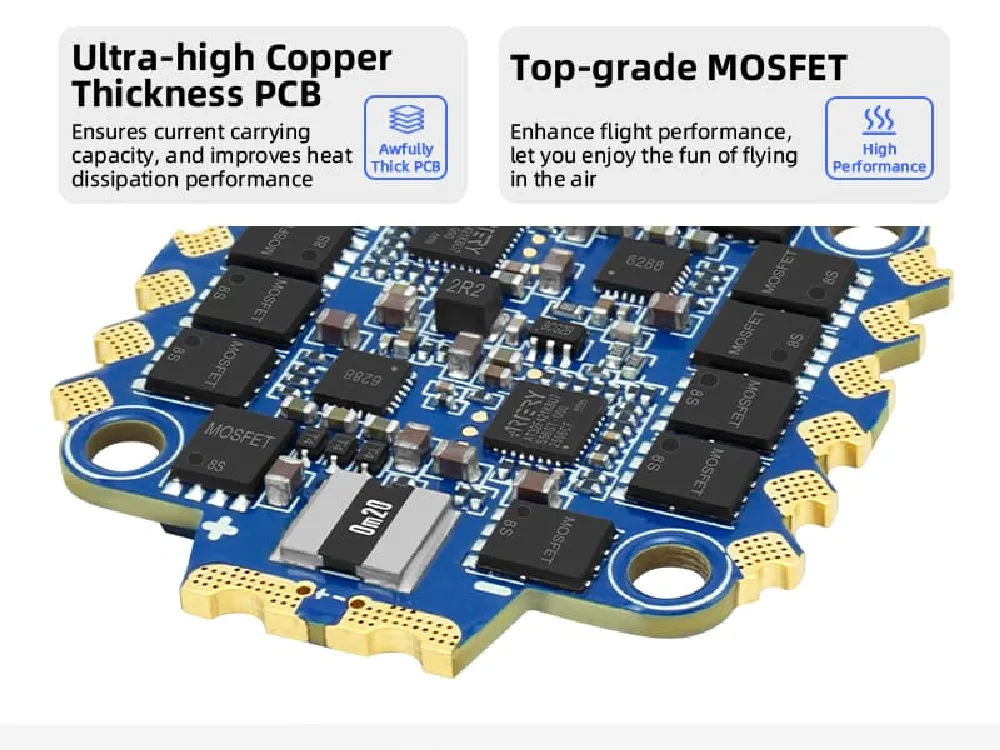

• High-quality ultra-high copper thickness PCB ensures the current carrying capacity while improving heat dissipation. Equipped with top-level MOSFET, it enhances flight performance and makes you enjoy the fun of flying in the air.

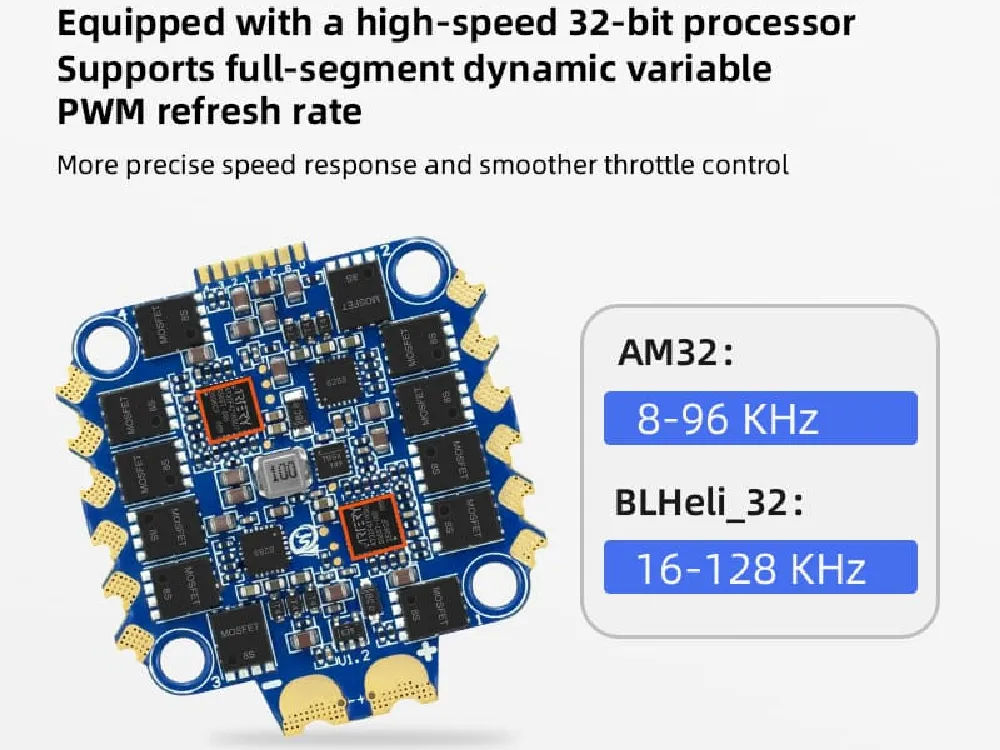

• Equipped with a high-speed 32-bit processor, it supports full-segment dynamic PWM variable refresh rate of 8KHz-128KHz, with more precise speed response and smoother throttle control.
• Supports 6S/8S wide range voltage input, allowing your aircraft to adapt to power batteries of different specifications, improving the versatility of the device.
• 30.5mm installation hole spacing is more suitable for large-sized load-type flight vehicles and is easy to install.
• The angled extended large-area pad design not only makes the motor circuit layout more refined, but also effectively simplifies the welding process.

Secifications:

• Model: Blueson A2
• Processor: AT32F421
• Firmware Version: AM32
• PWM Frequency: 8KHZ-128KHZ
• Voltage Range: 2-6S for 65A Version / 2S-8S for 70A Version
• Continous Current: 6S-65A / 8S-70A
• Peak Current: 6S-120A / 8S 150A
• Support Protocol: Dshot600/300/150,Oneshot,Multishot.PWM
• Telemetry Return: YES
• Galvanometer: Yes
• BEC: NO
• Mounting Hole Spacing: 30.5 * 30.5mm, Φ4mm/M3

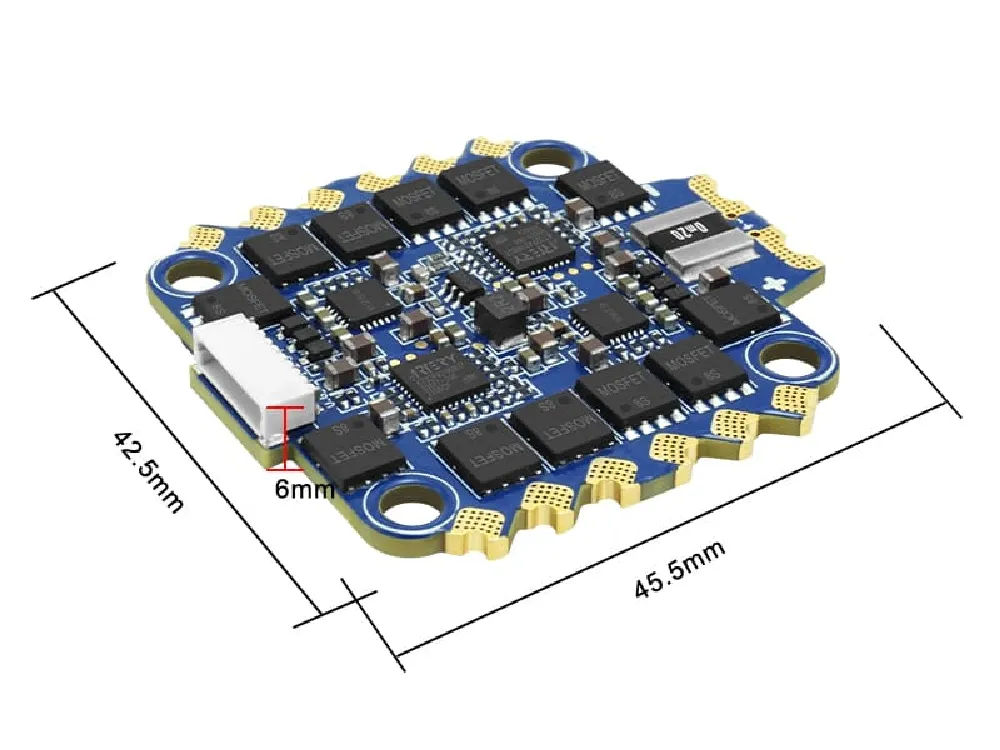

• Product Size: 45.5 W * H)
• Product Weight: 17g

Package Includes:

• SEQURE Blueson A2 4IN1 ESC × 1
• 30AWG 40mm reverse double plug SH1.0-8P cable × 1
• 30AWG 60mm single plug SH1.0-8P cable × 1
• 12AWG 100mm power cable (black/red)×2
• XT60H-M black male connector×1
• 35V 680UF solid capacitor×1
• M3*8mm shock absorbing washer (black) × 5
